Overview
The Reelleer domain model is built around a Timeline structure that represents a complete video composition. This model supports layered video editing with multiple tracks, clips, transitions, and effects - similar to professional video editing software but optimized for Instagram Reel creation.

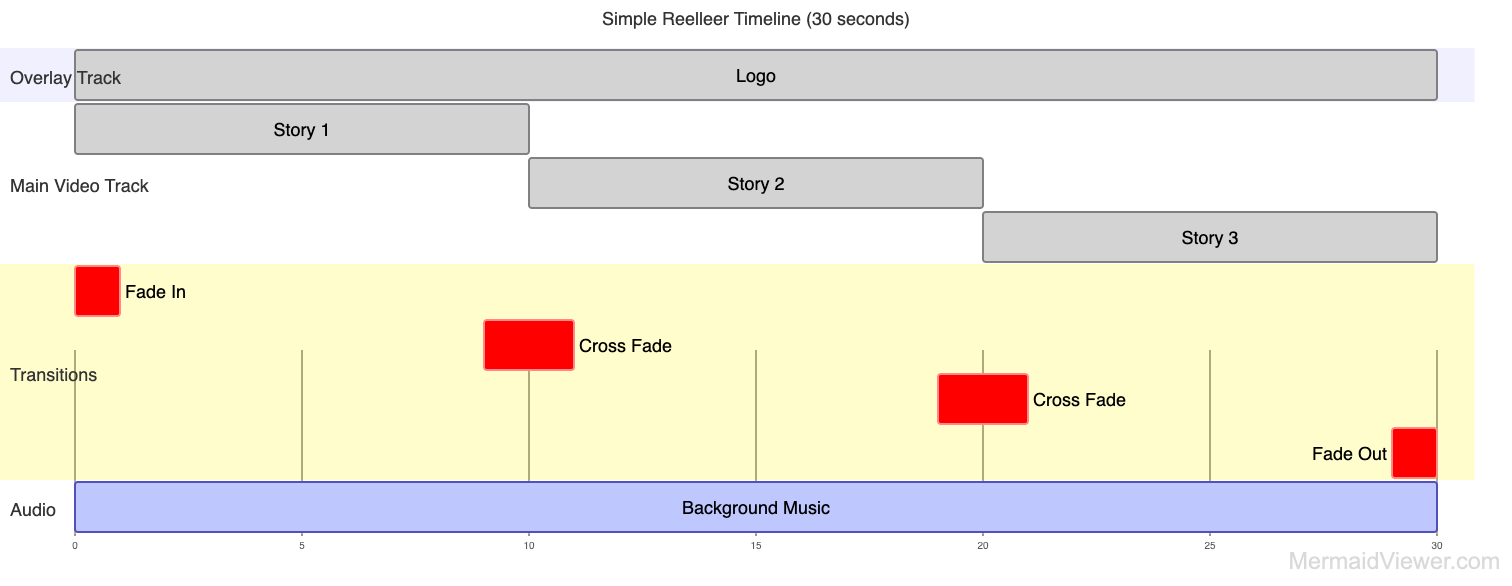

Visual Timeline Example
Here's a more detailed view of how a complex timeline looks in practice:
Core Concepts
1. Timeline
The root container that defines the overall video composition:
- Viewport: Output dimensions (1080x1920 for Instagram Reels)
- Duration: Total timeline length in seconds
- Tracks: Multiple layers of content that can be composited together
Timeline Schema
{
"timeline": {
"viewport": {
"width": 1080, // Instagram Reel width
"height": 1920 // Instagram Reel height
},
"duration": 120.0, // Total duration in seconds
"tracks": [...] // Array of track objects
}
}
2. Tracks
Separate layers in the timeline, allowing for complex compositions:
- Main Video Layer: Primary content (stories, videos, images)
- Overlay Layer: Secondary content (logos, effects, text)
- Each track can contain multiple clips and layer-wide effects
Track Schema
{
"id": "track-1",
"type": "video", // "video", "audio", "overlay"
"name": "Main Video Layer",
"clips": [...], // Array of clip objects
"layerEffects": [...] // Effects applied to entire track
}
3. Clips
Individual media elements placed on tracks:
- Video Clips: MP4 files with audio and visual content
- Image Clips: Static images (JPG, PNG) with specified duration
- Each clip has positioning, timing, and effect properties
Video Clip Schema
{
"id": "clip-1",
"type": "video",
"src": "video1.mp4",
"mediaSize": { "width": 1920, "height": 1080 },
"position": {
"x": 0, "y": 0, // Offset from anchor point
"anchor": "center", // "center", "top_left", "top_right", etc.
"scale": 0.5, // Scaling factor
"fit": "cover" // "cover", "contain", "fill", "none"
},
"start": 0.0, // Start time on timeline
"duration": 60.0, // Clip duration
"offset": 0.0, // Offset into source media
"transitionIn": {...}, // Entrance transition
"transitionOut": {...}, // Exit transition
"effects": [...], // Visual/audio effects
"audio": {...} // Audio-specific properties
}
Image Clip Schema
{
"id": "clip-2",
"type": "image",
"src": "image1.jpg",
"mediaSize": { "width": 1200, "height": 1200 },
"position": {...}, // Same as video
"start": 60.0,
"duration": 30.0, // How long to display
"transitionIn": {...},
"transitionOut": {...},
"effects": [...]
}
4. Transitions
Smooth connections between clips or tracks:
- Clip Transitions: Between consecutive clips on the same track
- Complex Transitions: Advanced multi-keyframe animations
- Support for various easing functions and parameters
Simple Transitions
{
"type": "fade_in",
"duration": 1.0,
"params": {}
}
Complex Transitions
{
"type": "morph",
"duration": 3.0,
"params": {
"keyframes": [
{ "time": 0.0, "scale": 1.0, "rotation": 0, "opacity": 1.0 },
{ "time": 0.5, "scale": 1.5, "rotation": 180, "opacity": 0.5 },
{ "time": 1.0, "scale": 1.0, "rotation": 360, "opacity": 1.0 }
],
"blur_amount": 2.0,
"color_shift": { "hue": 30, "saturation": 1.2 }
}
}
Position System
The positioning system allows precise control over media placement:
The positioning system allows precise control over media placement:
-
Anchor Points: Define the reference point for positioning
center: Center of the viewporttop_left,top_right,bottom_left,bottom_right: Corner anchorstop_center,bottom_center,left_center,right_center: Edge centers
-
Fit Modes: Control how media is scaled to fit
cover: Scale to fill viewport, crop if necessarycontain: Scale to fit within viewport, letterbox if necessaryfill: Stretch to exact viewport dimensionsnone: Use original size
Effects System
Effects can be applied at multiple levels:
Clip-Level Effects
"effects": [
{ "type": "color_correction", "params": { "brightness": 1.1, "contrast": 1.2 } },
{ "type": "stabilization", "params": {} },
{ "type": "chroma_key", "params": { "color": "#00FF00" } }
]
Track-Level Effects
"layerEffects": [
{ "type": "opacity", "value": 0.9 }
]
Global Effects
"globalEffects": [
{ "type": "lut", "name": "cinematic" }
]
Example: Complete Timeline
Here's a practical example showing how these components work together:
{
"timeline": {
"viewport": {
"width": 1080,
"height": 1920
},
"duration": 120.0,
"tracks": [
{
"id": "track-1",
"type": "video",
"name": "Main Video Layer",
"clips": [
{
"id": "clip-1",
"type": "video",
"src": "video1.mp4",
"mediaSize": { "width": 1920, "height": 1080 },
"position": {
"x": 0,
"y": 0,
"anchor": "center",
"scale": 0.5,
"fit": "cover"
},
"start": 0.0,
"duration": 60.0,
"offset": 0.0,
"transitionIn": {
"type": "fade_in",
"duration": 1.0,
"params": {}
},
"transitionOut": {
"type": "zoom_out",
"duration": 2.0,
"params": {
"scale_to": 0.5,
"easing": "ease_in"
}
},
"effects": [
{ "type": "color_correction", "params": { "brightness": 1.1, "contrast": 1.2 } },
{ "type": "stabilization", "params": {} }
],
"audio": {
"volume": 0.8,
"effects": [
{ "type": "fade_in", "duration": 2.0 }
]
}
},
{
"id": "clip-2",
"type": "image",
"src": "image1.jpg",
"mediaSize": { "width": 1200, "height": 1200 },
"position": {
"x": 0,
"y": 0,
"anchor": "center",
"scale": 1.0,
"fit": "contain"
},
"start": 60.0,
"duration": 30.0,
"transitionIn": {
"type": "wipe",
"duration": 1.5,
"params": {
"direction": "left_to_right",
"angle": 0,
"softness": 0.1
}
},
"transitionOut": {
"type": "dissolve",
"duration": 1.0,
"params": {
"opacity_curve": "ease_out"
}
},
"effects": [
{ "type": "zoom_in", "params": { "scale": 1.2 } }
]
},
{
"id": "clip-3",
"type": "video",
"src": "video2.mp4",
"mediaSize": { "width": 1080, "height": 1920 },
"position": {
"x": 0,
"y": 0,
"anchor": "center",
"scale": 1.0,
"fit": "cover"
},
"start": 90.0,
"duration": 30.0,
"transitionIn": {
"type": "slide",
"duration": 2.5,
"params": {
"direction": "up",
"easing": "ease_in_out"
}
},
"transitionOut": {
"type": "fade_out",
"duration": 2.0,
"params": {
"easing": "linear"
}
},
"effects": [
{ "type": "color_grade", "params": { "saturation": 1.3, "warmth": 0.2 } }
]
}
],
"layerEffects": [
{ "type": "opacity", "value": 0.9 }
]
},
{
"id": "track-2",
"type": "video",
"name": "Overlay Layer",
"clips": [
{
"id": "clip-4",
"type": "video",
"src": "overlay.mp4",
"mediaSize": { "width": 1080, "height": 1920 },
"position": {
"x": 0,
"y": 0,
"anchor": "center",
"scale": 1.0,
"fit": "cover"
},
"start": 10.0,
"duration": 20.0,
"offset": 5.0,
"effects": [
{ "type": "chroma_key", "params": { "color": "#00FF00" } }
]
},
{
"id": "clip-5",
"type": "image",
"src": "logo.png",
"mediaSize": { "width": 512, "height": 512 },
"position": {
"x": 20,
"y": -20,
"anchor": "top_right",
"scale": 0.3,
"fit": "none"
},
"start": 30.0,
"duration": 60.0,
"transition": {
"type": "scale_in",
"duration": 1.0,
"params": {
"scale_from": 0.0,
"scale_to": 0.3,
"rotation": 360,
"easing": "bounce_out"
}
},
"effects": [
{ "type": "drop_shadow", "params": { "blur": 5, "opacity": 0.5, "x": 2, "y": 2 } }
]
}
]
}
],
"transitions": [
{
"id": "complex-transition-1",
"fromClip": "clip-2",
"toClip": "clip-3",
"type": "morph",
"duration": 3.0,
"params": {
"keyframes": [
{ "time": 0.0, "scale": 1.0, "rotation": 0, "opacity": 1.0 },
{ "time": 0.5, "scale": 1.5, "rotation": 180, "opacity": 0.5 },
{ "time": 1.0, "scale": 1.0, "rotation": 360, "opacity": 1.0 }
],
"blur_amount": 2.0,
"color_shift": { "hue": 30, "saturation": 1.2 }
}
}
],
"globalEffects": [
{ "type": "lut", "name": "cinematic" }
]
}
Other Considerations
Flexibility
- Supports any number of tracks and clips
- Extensible effects system
- Multiple media types in single timeline
Professional Features
- Keyframe-based animations
- Audio synchronization
- Advanced positioning system
- Layer compositing
Instagram Optimization
- Pre-configured for 9:16 aspect ratio
- Optimized duration limits
- Mobile-first design considerations
Mermaid Schema
Simple
%%{init: {'gantt': {'gridLineStartPadding': 350, 'fontSize': 18, 'sectionFontSize': 18, 'barHeight': 50, 'sectionHeight': 60}}}%%
gantt
title Simple Reelleer Timeline (30 seconds)
dateFormat X
axisFormat %s
section Overlay Track
Logo :done, logo, 0, 30
section Main Video Track
Story 1 :done, story1, 0, 10
Story 2 :done, story2, 10, 20
Story 3 :done, story3, 20, 30
section Transitions
Fade In :crit, fadein, 0, 1
Cross Fade :crit, cross1, 9, 11
Cross Fade :crit, cross2, 19, 21
Fade Out :crit, fadeout, 29, 30
section Audio
Background Music :active, music, 0, 30
Complex
%%{init: {'gantt': {'gridLineStartPadding': 350, 'fontSize': 11, 'sectionFontSize': 13, 'barHeight': 18, 'sectionHeight': 50}}}%%
gantt
title Reelleer Timeline Model (120 seconds)
dateFormat X
axisFormat %s
section Track 2 - Overlay
Overlay Video (overlay.mp4) :done, overlay1, 10, 30
Logo (logo.png) :done, logo1, 30, 90
Text Animation (title.png) :done, text1, 15, 45
Watermark (brand.png) :done, water1, 0, 120
Call-to-Action (cta.png) :done, cta1, 100, 120
section Track 1 - Main Video
Intro Video (intro.mp4) :done, intro1, 0, 15
Story 1 (story1.mp4) :done, story1, 15, 35
Story 2 (story2.jpg) :done, story2, 35, 50
Story 3 (story3.mp4) :done, story3, 50, 70
Product Shot (product.jpg) :done, product1, 70, 85
Story 4 (story4.mp4) :done, story4, 85, 105
Outro Video (outro.mp4) :done, outro1, 105, 120
section Transitions
Fade In :crit, trans1, 0, 2
Cross Dissolve :crit, trans2, 14, 16
Zoom In :crit, trans3, 34, 36
Wipe Left :crit, trans4, 49, 51
Morph Effect :crit, trans5, 69, 71
Slide Up :crit, trans6, 84, 86
Scale Out :crit, trans7, 104, 106
Fade Out :crit, trans8, 118, 120
section Audio Track
Background Music :active, music1, 0, 120
Voice Over Intro :active, voice1, 5, 20
Sound Effects :active, sfx1, 50, 55
Voice Over Outro :active, voice2, 100, 115
section Global Effects
Cinematic LUT :active, global1, 0, 120
Color Grading :active, global2, 0, 120
