Reelleer - System Design

Overview

reelleer.com is a service that automatically converts Instagram stories into high-quality reels. The system follows a simple yet effective pipeline that processes user content through three main stages: content ingestion, timeline creation, and video rendering.

System Architecture

The architecture consists of three core components working in sequence:

1. Content Ingestion Layer

This component handles the initial data collection phase:

• Connects to Instagram's API to fetch user stories
• Downloads images and video content from user's story collection
• Validates and preprocesses media files for further processing
• Handles rate limiting and API quotas from Instagram
• Stores raw media assets in temporary storage

2. Timeline Creation Engine

The timeline engine is responsible for organizing content into a coherent sequence:

• Analyzes the collected media to determine optimal ordering
• Applies timing algorithms to create smooth transitions
• Generates metadata for each media segment (duration, transitions, effects)
• Creates a timeline specification that will guide the rendering process
• Ensures the final output meets Instagram's reel format requirements

3. Video Rendering Service

The rendering service transforms the timeline into the final video output:

• Processes the timeline specification to generate video frames
• Applies transitions, effects, and overlays as defined in the timeline
• Handles video encoding and compression for optimal quality
• Ensures output format compliance with Instagram's reel specifications
• Manages rendering queues for scalability

4. Output Delivery

The final stage delivers the completed reel:

• Provides the rendered video file in Instagram-compatible format
• Offers download options for users
• May include direct publishing capabilities to Instagram
• Maintains quality metrics and user feedback collection

Technical Considerations

Scalability

• The system uses a pipeline architecture allowing for horizontal scaling
• Each component can be scaled independently based on demand
• Queue-based processing ensures smooth handling of peak loads

Performance

• Asynchronous processing prevents blocking during media download
• Optimized rendering algorithms minimize processing time
• Caching strategies for frequently accessed content

Reliability

• Error handling at each stage with appropriate fallback mechanisms
• Monitoring and alerting for system health
• Data persistence for recovery scenarios

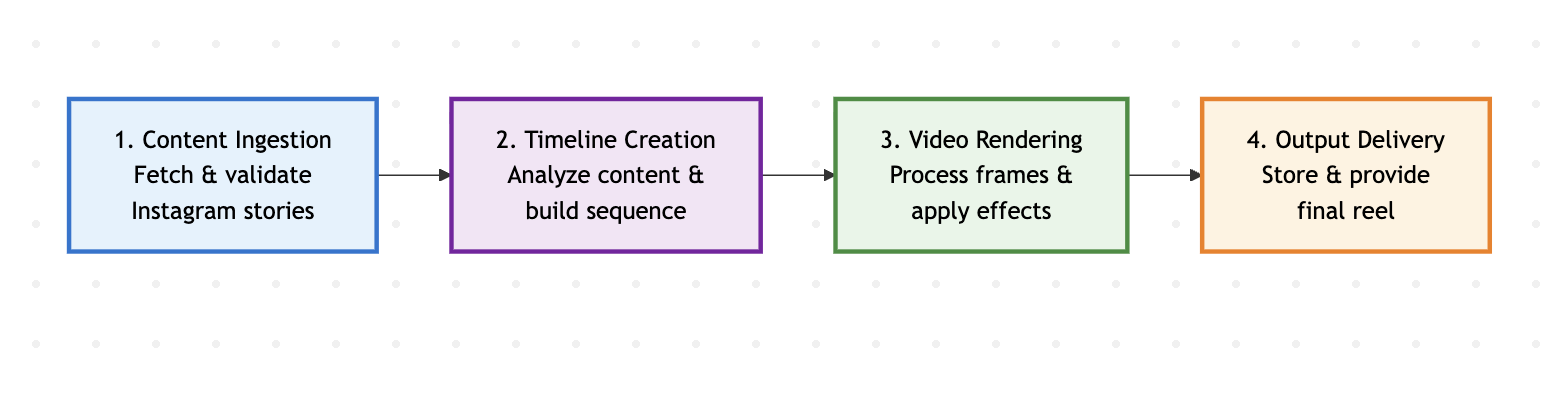

System Flow Diagram

The following diagram illustrates the 4-step process flow of the Reelleer system:

%%{init: {'theme':'base', 'themeVariables': {'primaryColor': '#ff6b6b', 'primaryTextColor': '#000', 'primaryBorderColor': '#ff5252', 'lineColor': '#333', 'sectionBkgColor': '#f9f9f9', 'altSectionBkgColor': '#e8f4f8', 'gridColor': '#ddd', 'clusterBkg': '#fffbf0', 'clusterBorder': '#ff6b6b', 'mainBkg': '#fff', 'secondBkg': '#fff', 'tertiaryColor': '#000'}}}%%
flowchart LR
    INGEST[1. Content Ingestion<br/>Fetch & validate<br/>Instagram stories] --> TIMELINE[2. Timeline Creation<br/>Analyze content &<br/>build sequence]

    TIMELINE --> RENDER[3. Video Rendering<br/>Process frames &<br/>apply effects]

    RENDER --> DELIVER[4. Output Delivery<br/>Store & provide<br/>final reel]

    %% Styling
    classDef step1 fill:#e3f2fd,stroke:#1976d2,stroke-width:3px,color:#000
    classDef step2 fill:#f3e5f5,stroke:#7b1fa2,stroke-width:3px,color:#000
    classDef step3 fill:#e8f5e8,stroke:#388e3c,stroke-width:3px,color:#000
    classDef step4 fill:#fff3e0,stroke:#f57c00,stroke-width:3px,color:#000

    class INGEST step1
    class TIMELINE step2
    class RENDER step3
    class DELIVER step4
